Air-Crafts Handled
|
|
|
|
|
|
|
|
|
|
|
Apart from the above details, private charter aircrafts such as Embraer, Dornier, Falcon Gulfstream, Premier etc also operated.
Runway Characteristics
| Runway Designation | Length X Width | Dimensions of strips (M) | True Bearings | Strength of Pavement |
|---|---|---|---|---|
| 07 | 3050 X 45 | 3170 x 300 M | 69.05 DEG | PCN 64/F/A/W/T ASPHALT |
| 25 | 3050 X 45 | 3170 x 300 M | 249.05 DEG | PCN 64/F/A/W/T ASPHALT |
| Runway Designation | Geographical Coordinates of Threshold and RWY end | Threshold elevation and highest elevation of TDZ of precision APP RWY | Dimensions of runway end safety areas (M) | |
| 07 | THR: 115445.633N 0753152.532E RWY END: 115520.943N 0753326.771E | THR: 344.08 FT* TDZ: 343.57 FT* | 240 x 90 | |
| 25 | THR: 115520.943N 0753326.771E RWY END: 115445.633N 0753152.532E | THR: 316.87 FT* TDZ: 334.44 FT* | 240 x 90 |
Landing and Parking
- Total parking stands -14
- Stand 1 to 8- Suitable for Aircrafts up to Code ‘C’
- Stand 9 to 14- MARS Stands (Multiple Aircraft Ramp System) Suitable for 06 Aircrafts with Code letter D & E or 12 Aircrafts with Code letter up to ‘C’
- Kannur Airport can handle 20 Code C Aircraft / 06 Code E and 8 Code C Aircrafts at a time
Night Landing Facilities
- Approach lighting system
- Runway Threshold lights
- Visual Slope Indicator System (PAPI)
- Runway Centre line lights
- Runway Edge Lights
- Runway End Lights
- Turn pad Edge Lights
- Illuminated landing Direction Indicator
- Aerodrome Beacon Light
- Taxiway Edge Lights
Navigation Equipments Available at KIAL
- DVOR
- DME
- ILS LLZ25
- GP25
- DME ILS 25
Fire and Rescue System
Kannur International Airport is a Category-9 airport.
There are two Fire Stations
- One in the East
- One in the West
Kannur International Airport has
- Required number of trained Fire Crew
- 4 CFTs
- 2 Ambulances
Refueling System
- BKFFPL (BPCL-KIAL Fuel Farm Private Ltd.)
- 04 Refueling Bowsers 16000 Ltrs
- Discharge Rate 700 L/Min/ Hose
- A/G ATF Tank Capacity: 2 X 450 KL
- U/G ATF Tank Capacity: 2 X 45 KL
- Plan to start hydrant system of refueling in the near future
Contact No +91 490-2376444
Security
Central Industrial Security Force has been assigned with the task of security of Kannur International Airport
Other Features of Airport

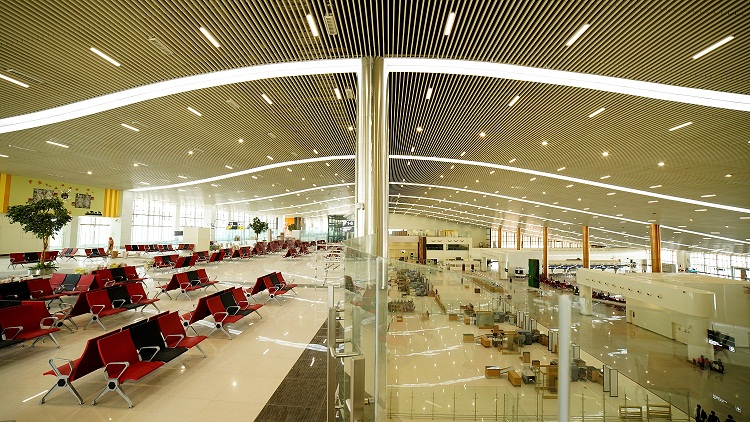

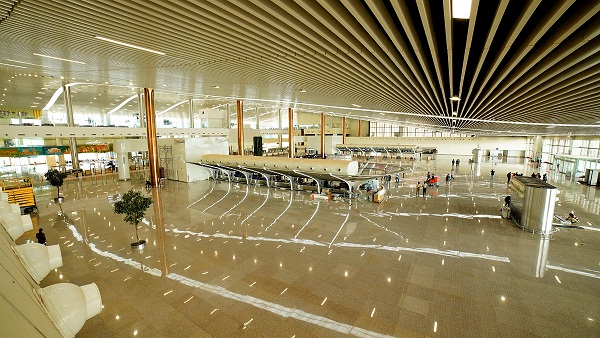

Integrated Terminal Building for Domestic and International Operations spread over 95000 sq mts.
Operating Airlines
The airlines operating at Kannur International Airport
- AIR INDIA EXPRESS
- GO FIRST
- INDIGO
More to join soon...
